11_MCX-50-1-14/111_NH

Produktnummer: 84066852
Huber Suhner
Lagerbeholdning:

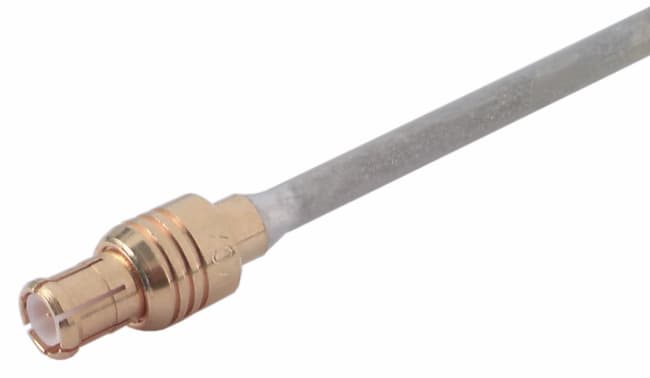

Coaxial connector
|MCX, 50 Ohm, Straight cable female

Engangement Force max. 25N
Disengagement Force max. 20N
Cable Entry Centre Contact soldered
Cable Entry Outer Contact soldered
Class 1037
Body Material Brass
Body Plating SUCOPRO Plating
Cable Group Connectors Y2
Cable Group2 Y15
Cable Retention Force 41N
Cable1 EZ_47_TP_M17
Cable2 SUCOFORM_47_CU
Centre Contact Material Brass
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight cable plug
CONNECTOR SERIES MCX
Dielectric Size 1mm
Gender plug
ID 11_MCX-50-1-14/111_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 6GHz
Interface Standards IEC 60169-36_CECC 22220
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 155°C
Operating Temperature min. -55°C
Outer Contact Material Copper Beryllium Alloy
Outer Contact Plating SUCOPRO Plating
Packaging Bulk 100 pcs
PATTERN CLASSES 11
Weight 0.0006kg
CONNECTOR SHAPE straight
Type Number 11_MCX-50-1-14/111_NH
OBJECT_ID 6123732
