11_BNC-75-4-40/133_NE

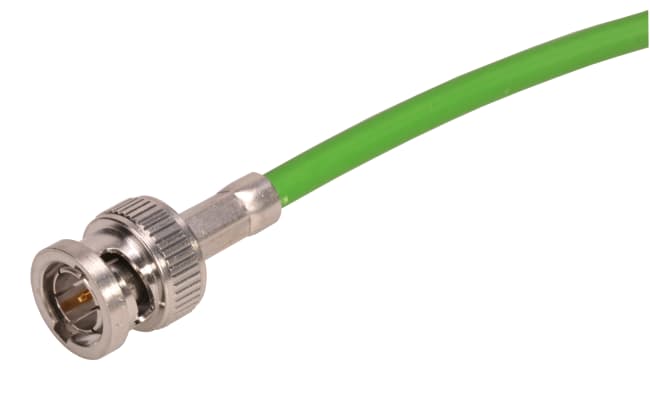

Coaxial connector
BNC, 75 Ohm, Straight cable male
| H+S | |
|---|---|
| Suitable cables | G_04233_D |
| Product code | 11_BNC-75-4-40/133_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Brass / SUCOPRO Plating |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | U18 , U18 - 4 mm / 75 Ohm |
| Standard | Interface compatible with IEC 61169-8 |
| Mating cycles | 500 |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | crimped |
| Interface type | BNC |
| Gender | plug |
| Operation temperature | -65 °C ... 165 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Bronze / SUCOPLATE (R) Plating |
| Interface frequency | 3 GHz |
| Body | Bronze / SUCOPLATE (R) Plating |
| Cable entry centre contact | crimped |
| Impedance | 75 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
