| Cable Entry Centre Contact |
soldered |
| Cable Entry Outer Contact |
clamped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U12 |
| Cable Group2 |
U14 |
| Cable Retention Force |
260 N |
| Cable1 |
G_03233_D |
| Centre Contact Material |
Brass |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |
| Connector Description |

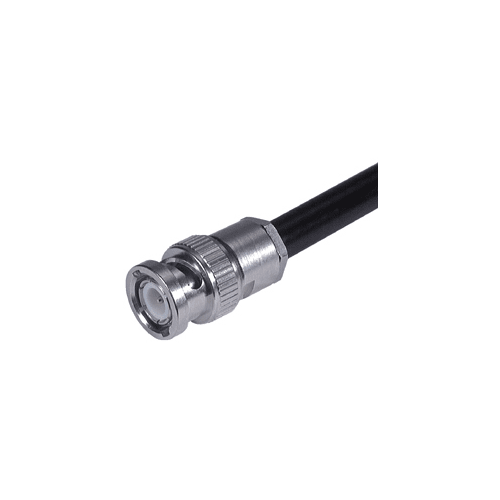

Straight cable plug |
| CONNECTOR SERIES |
BNC |
| Coupling Nut Material |
Brass |
| Coupling Nut Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
3 mm |
| Gasket Material |
VMQ (Silicone rubber) |
| Gender |
plug |
| ID |
11_BNC-75-3-11/133_N |
| Impedance |
75 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
1 GHz |
| Interface Standards |
Interface compatible with IEC 61169-8 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
11 |
| Weight |
0.0159 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |
11_BNC-75-3-11/133_NE |
| OBJECT_ID |
5976286 |
