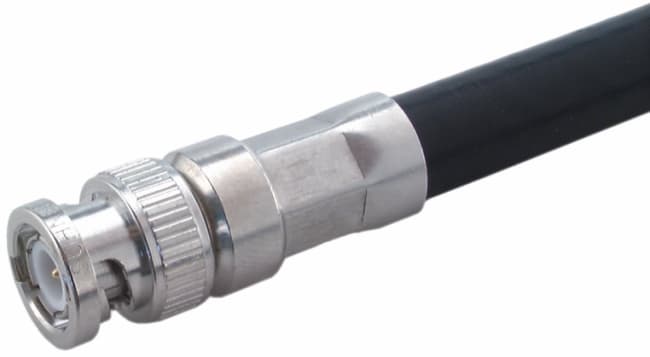

11 BNC-50-7-6/133NE (RG 214)
Coaxial connector
BNC, 50 Ohm, Straight cable male
| H+S | |
|---|---|
| Suitable cables | RG_214_/U |
| Product code | 11_BNC-50-7-6/133_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PFA / PTFE |
| Centre contact | Brass / Gold Plating (Nickel underplated) |
| Available as assembly only | No |
| Details | CAS: 7439-92-1 Lead |
| Cable group | U43U32 , U43 - 7 mm / 50 OhmU32 - 7 mm / 50 Ohm |
| Crimp ferrule | Brass / SUCOPLATE (R) Plating |
| Additional cables | RADOX_RF_214 |
| Standard | IEC 60169-8_MIL-STD-348A/301_CECC 22120 |
| Mating cycles | 500 |
| Weight | 0.0182 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | crimped |
| Interface type | BNC |
| Gender | plug |
| Operation temperature | -65 °C ... 165 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Interface frequency | 4 GHz |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | crimped |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
