11 BNC-50-4-53/133NE

Produktnummer: 22649863
Huber Suhner
Lagerbeholdning:

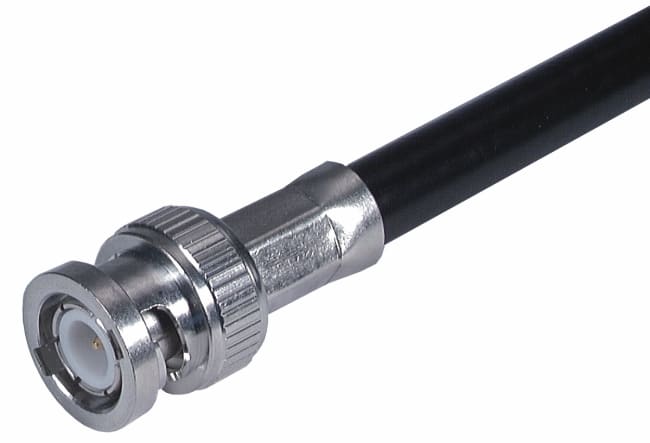

Coaxial connector
BNC, 50 Ohm, Straight cable male

H+S
Interface type BNC
Operation temperature -65 °C ... 165 °C
Suitable cables S_04272_B
Coupling nut Brass / SUCOPLATE (R) Plating
Outer conductor Brass / SUCOPLATE (R) Plating
Product code 11_BNC-50-4-53/133_N
Gasket VMQ (Silicone rubber)
Insulator PFA / PTFE
Centre contact Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Interface frequency 4 GHz
Available as assembly only No
Cable group X9S16 , X9 - 4 mm / 50 OhmS16 - 4 mm / 50 Ohm
Crimp ferrule Copper / SUCOPLATE (R) Plating
Body Brass / SUCOPLATE (R) Plating
Cable entry centre contact plugged
Standard deviates from standard
Mating cycles 500
Impedance 50 Ω
Weight 0.0131 kg
Cable entry outer contact crimped
Gender plug
