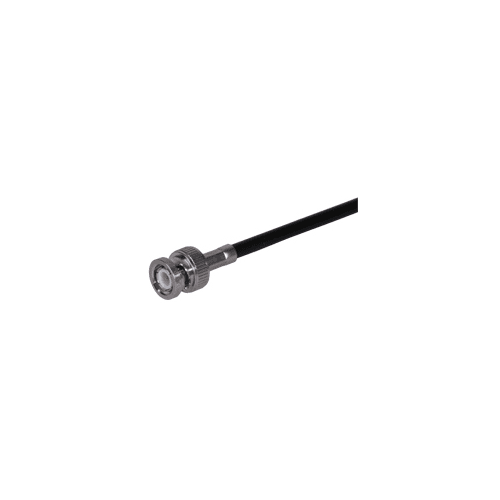

11_BNC-50-3-88/133_NH
Frequency min. Range2 | 2.5GHz |
VSWR Range 2 | 1.173 |
Return Loss Range2 | 22dB |
Highlight2 | Excellent return loss performance |
Cable Entry Centre Contact | crimped |
Cable Entry Outer Contact | crimped |
Class | 1037 |
Body Material | Brass |
Frequency max. Range2 | 4GHz |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | U11 |
Cable Group2 | U41 |
Cable Retention Force | 250N |
Cable1 | RG_400_/U |
Cable2 | ENVIROFLEX_400 |
Cable5 | RADOX_RF_400 |
Centre Contact Material | Brass |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight cable plug |
CONNECTOR SERIES | BNC |
Coupling Nut Material | Brass |
Coupling Nut Plating | SUCOPLATE (R) Plating |
Crimp Ferrule Material | Copper |
Crimp Ferrule Plating | SUCOPLATE (R) Plating |
Dielectric Size | 3mm |
Frequency max. Range1 | 2.5GHz |
Frequency min. Range1 | 0GHz |
Gasket Material | VMQ (Silicone rubber) |
Gender | plug |
Highlight1 | SUHNER full crimp cable attachement |
ID | 11_BNC-50-3-88/133_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 4GHz |
Interface Standards | IEC 61169-8_MIL-STD-348A/301_CECC 22120 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165°C |
Operating Temperature min. | -65°C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Bulk 100 pcs |
PATTERN CLASSES | 11 |
Return Loss Range1 | 29dB |
Weight | 0.01kg |
CONNECTOR SHAPE | straight |
Type Number | 11_BNC-50-3-88/133_NH |
VSWR Range 1 | 1.074 |
OBJECT_ID | 4458044 |
