11 BNC-50-3-54/103NE

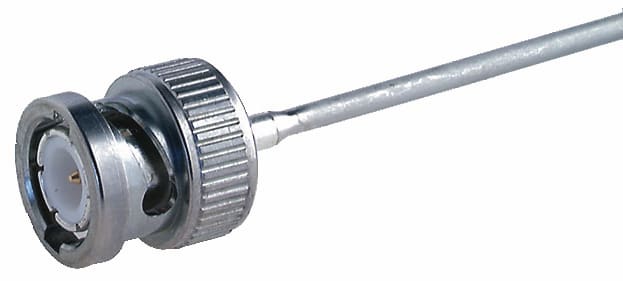

Coaxial connector
|BNC, 50 Ohm, Straight cable male
Cable Group3 | Y17 |
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | soldered |
Class | 1037 |
Body Material | Brass |
Body Plating | Silver Plating |
Cable Group Connectors | Y5 |
Cable Group2 | Y12 |
Cable Retention Force | 309N |
Cable1 | EZ_141_TP_M17 |
Cable2 | SUCOFORM_141 |
Centre Contact Material | Brass |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight cable plug |
CONNECTOR SERIES | BNC |
Coupling Nut Material | Brass |
Coupling Nut Plating | SUCOPLATE (R) Plating |
Dielectric Size | 3mm |
Gasket Material | VMQ (Silicone rubber) |
Gender | plug |
ID | 11_BNC-50-3-54/103_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 4GHz |
Interface Standards | IEC 60169-8_MIL-STD-348A/301_CECC 22120 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165°C |
Operating Temperature min. | -65°C |
Outer Contact Material | Brass |
Outer Contact Plating | Silver Plating |
Packaging | Single |
PATTERN CLASSES | 11 |
Weight | 0.0096kg |
CONNECTOR SHAPE | straight |
Type Number | 11_BNC-50-3-54/103_NE |
OBJECT_ID | 1596716 |
