11 716-50-9-3/003 E

Produktnummer: 22544077
Huber Suhner
Lagerbeholdning:

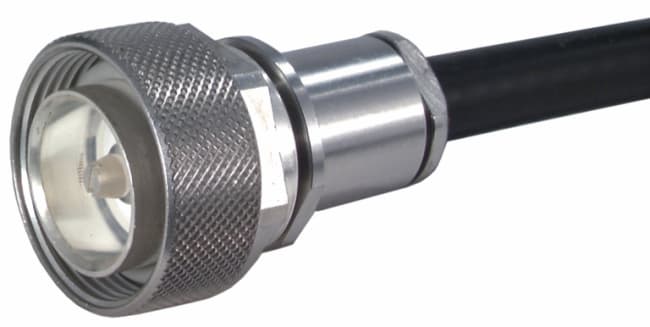

Coaxial connector
|7/16, 50 Ohm, Straight cable male

Cable Entry Centre Contact soldered
Cable Entry Outer Contact clamped
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group Connectors U38
Cable Retention Force 587N
Cable1 RG_217_/U
Centre Contact Material Brass
Centre Contact Plating Silver Plating
Connector Description Straight cable plug
CONNECTOR SERIES 7/16
Coupling Nut Material Brass
Coupling Nut Plating SUCOPLATE (R) Plating
Dielectric Size 9mm
Gasket Material VMQ (Silicone rubber)
Gender plug
ID 11_716-50-9-3/003_-
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 7.5GHz
Interface Standards IEC 61169-4_CECC 22190_DIN 47223_VG 95250
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165°C
Operating Temperature min. -65°C
Outer Contact Material Brass
Outer Contact Plating Silver Plating
Packaging Single
PATTERN CLASSES 11
Weight 0.1324kg
CONNECTOR SHAPE straight
Type Number 11_716-50-9-3/003_-E
OBJECT_ID 2970814
