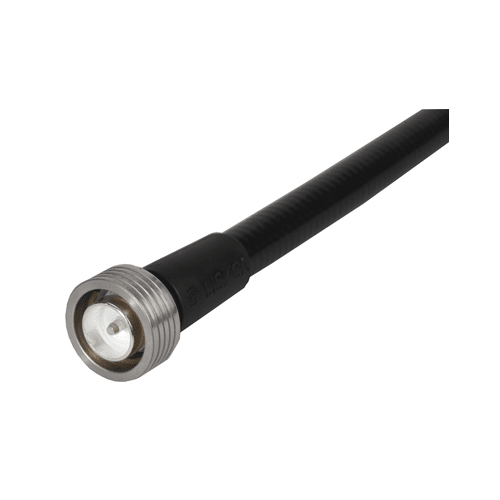

11_4310-50-12-Z2/033_-E
Coaxial connector
4.3-10, 50 Ohm, Straight cable male
H+S | |
---|---|
Interface type | 4.3-10 |
Operation temperature | -55 °C ... 90 °C |
Suitable cables | SUCOFEED_1/2_LW |
Coupling nut | Brass / SUCOPLATE (R) Plating |
Outer conductor | Brass / SUCOPLATE (R) Plating |
Product code | 11_4310-50-12-Z2/033_- |
Gasket | VMQ (Silicone rubber) |
Insulator | PTFE (Polytetrafluoroethylene) |
Centre contact | Bronze / Silver Plating |
Interface frequency | 13 GHz |
Ingress protection (IP Rating) | Mated / IP68 (24 h of water, 1 m) |
Available as assembly only | No |
Cable group | M12 , M12 - 12 mm / 50 Ohm |
Body | Brass / SUCOPLATE (R) Plating |
Cable entry centre contact | plugged |
Standard | IEC 61169-54 |
Impedance | 50 Ω |
Weight | 0.101 kg |
Cable entry outer contact | clamped |
Gender | plug |
