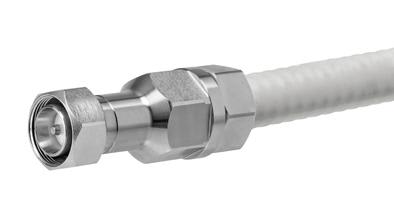

11_4310-50-12-X62/033_-E
Coaxial connector
4.3-10, 50 Ohm, Straight cable male
| H+S | |
|---|---|
| Interface type | 4.3-10 |
| Operation temperature | -55 °C ... 85 °C |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Product code | 11_4310-50-12-X62/033_- |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Bronze / Silver Plating |
| Interface frequency | 12 GHz |
| Ingress protection (IP Rating) | Mated / IP68 (24 h of water, 1 m) |
| Available as assembly only | No |
| Cable group | U99 , U99 - Customer specific |
| Additional cables | ANDREW/COMMSCOPE AL4RPV-50 |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | plugged |
| Standard | IEC 61169-54 |
| Other body part | Brass / SUCOPLATE (R) Plating |
| Mating cycles | 100 |
| Impedance | 50 Ω |
| Weight | 0.1154 kg |
| Cable entry outer contact | clamped |
| Gender | plug |
