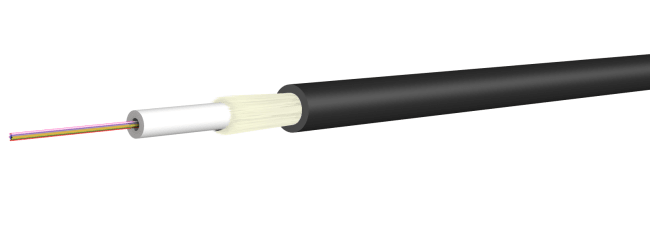

08-8G50/W(ZNG)H-G85
| Water penetr Standard | IEC 60794-1-2 F5B |
| Impact Standard | IEC 60794-1-2 E4 |
| Tension Test Standard | IEC 60794-1-2 E1 |
| Strain Reliefed Armouring | Rodent-protected, glass-armoured |
| Wavelength | for singlemode at 1550nm, for multimode at 1300nm |
| Fire Standard Single | IEC 60332-1-2 |
| Temperature Standard | IEC 60794-1-22 F1 |
| Crush Test Standard | IEC 60794-1-2 E3 |
| Fire Standard Bundle | IEC 60332-3-22 |
| Fire Standard Circuit | IEC 60331-25 |
| Other Properties | Longitudinal and transversal watertight cable |
| Comments | Water penetration acc. IEC 60794-1-22 F5C: passed (h1m, t=24h, p<3m) Optional: OFNR UL listed - ordering code: ...-.../W(ZNG)H-...85-UR |
| Trademark | LSFH |
| Other Properties2 | For Masterline application |
| Class | 1032 |
| Cable Type | Metal free indoor and outdoor cable |
| Cable Description | Multi-fiber Loose Tube Cable |
| Outer Jacket Type | Outer jacket / PE flame retardant (LSFH) |
| Outer Jacket Ø | 8.5mm |
| Reinforcement Type | Reinforcement / glass-roving |
| Number of max. Fibres | 24 |
| Tube Type | Multi-fiber loose tube, up to 24 fibers each |
| Fire behavior | Low smoke, halogen free and self-extinguishing |
| ID | 24-.../W(ZNG)H-...85 |
| OBJECT_ID | 8453898 |
