08-8E9/W(ZNG)Y-G85
Mechanical Thermal Properies | For high mechanical and thermal stability |
Water penetr Standard | IEC 60794-1-2 F5B |
Impact Standard | IEC 60794-1-2 E4 |
Tension Test Standard | IEC 60794-1-2 E1 |
Strain Reliefed Armouring | Rodent-protected, glass-armoured |
Wavelength | for singlemode at 1550nm, for multimode at 1300nm |
Temperature Standard | IEC 60794-1-2 F1 |
Crush Test Standard | IEC 60794-1-2 E3 |
Installation | High chemical resistance against acids/alkalies |
Other Properties | Longitudinal and transversal watertight cable |
Other Properties2 | For Masterline application |
Class | 1032 |
Application | For use in ducts and in unprotected environment |
Cable Type | Metal free outdoor cable |

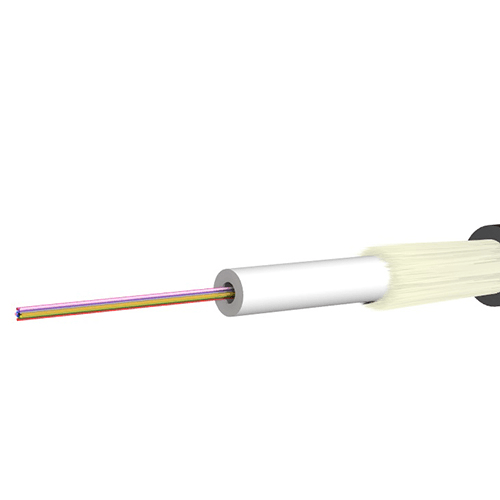

Cable Description | Multi-fiber Loose Tube Cable |
Outer Jacket Type | Outer jacket / LD-PE |
Outer Jacket Ø | 8.5mm |
Reinforcement Type | Reinforcement / glass-roving |
Number of max. Fibres | 24 |
Tube Type | Multi-fiber loose tube up to 12 fibers |
Fire behavior | Halogen free and non-corrosive fire gases |
ID | 12-.../W(ZNG)Y-...85 |
OBJECT_ID | 7317716 |
