04-E9A2/V(ZN)H-E28#D

Produktnummer: 84089089
Huber Suhner
Lagerbeholdning:

Impact Standard IEC 60794-1-2 E4
Stripping Easy stripping
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Strain relieved with aramide yarn
Wavelength for singlemode at 1310nm/1550nm
Fire Standard Single IEC 60332-1-2
Temperature Standard IEC 60794-1-2 F1
Crush Test Standard IEC 60794-1-2 E3
Installation Tight bending radii
Other Properties Optimized outer-diameter construction
Comments Shrink splice protection cover compatible Sandwich splice protection cover compatible
Trademark LSFH
Class 1032
Application For direct connector assembly
Cable Type Metal free indoor and outdoor cable

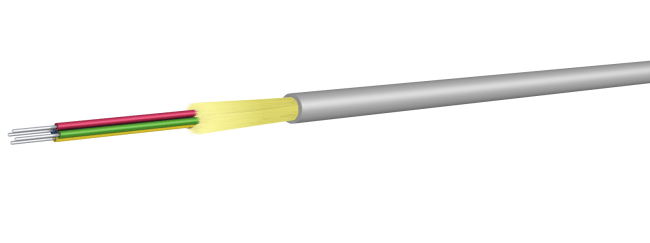

Cable Description FTTH Cable
Outer Jacket Type Outer jacket / PE flame retardant (LSFH)
Outer Jacket Ø 2.8mm
Reinforcement Type Reinforcement / aramide yarn
Number of max. Fibres 4
Tube Type Tight tube easy stripping
Fire behavior Halogen free and non-corrosive fire gases
ID 04-E9A2/V(ZN)H-...28
OBJECT_ID 8506799
