04-E9A2/CWSN(ZN)H-F42#D
Impact Standard | IEC 60794-1-2 E4 |
Tension Test Standard | IEC 60794-1-2 E1 |
Strain Reliefed Armouring | Strain relieved with aramide yarn |
Wavelength | for singlemode at 1310nm/1550nm |
Fire Standard Single | IEC 60332-1-2 |
Temperature Standard | IEC 60794-1-2 F1 |
Crush Test Standard | IEC 60794-1-2 E3 |
Strength Member Type | Strength member |
Installation | Tight bending radii |
Trademark | LSFH |
Class | 1032 |
Application | For direct connector assembly |

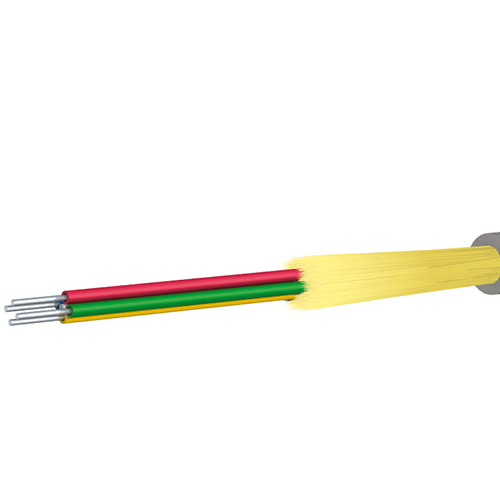

Cable Type | Metal free indoor and outdoor cable |
Cable Description | FTTH Cable |
Outer Jacket Type | Outer jacket / PE flame retardant |
Outer Jacket Ø | 4.2mm |
Reinforcement Type | Reinforcement / aramide yarn |
Number of max. Fibres | 4 |
Tube Type | Semi-tight tube |
Fire behavior | Low smoke, halogen free and self-extinguishing |
ID | 04-E9A2/CWSN(ZN)H-...42 |
OBJECT_ID | 3625869 |
