04-E9/CWJSNH-E20#D
| Impact Standard | IEC 60794-1-21 E4 |
| Stripping | Ripcord for easy jacked removal |
| Tension Test Standard | IEC 60794-1-21 E1 |
| Strain Reliefed Armouring | Each fiber strain relieved |
| Wavelength | for singlemode at 1550nm, for multimode at 1300nm |
| Fire Standard Single | IEC 60332-1-2 |
| Layer Type | Separating tape and 1 ripcord |
| Temperature Standard | IEC 60794-1-22 F12 |
| Crush Test Standard | IEC 60794-1-21 E3 |
| Fire Standard Bundle | IEC 60332-3-24 |
| Strength Member Type | Strength member |
| Other Properties | Cable with improved fire performance |
| Comments | Fire propagation on a vertical cable bundle according to IEC 60332-3-22 passed |
| Trademark | LSFH |
| Other Properties2 | For Smartline application |
| Class | 1032 |
| Application | For direct connector assembly with strain relief |
| Cable Type | Metal free indoor cable |

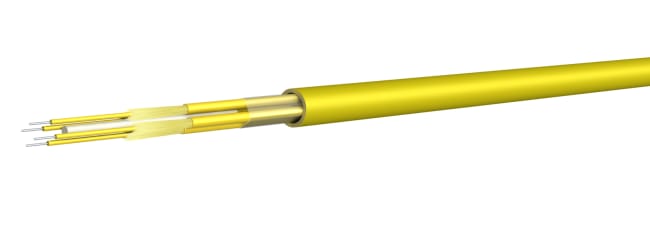

| Cable Description | Breakout Cable |
| Outer Jacket Type | Outer jacket / PE flame retardant |
| Outer Jacket Ø | 7mm |
| Reinforcement Type | Reinforcement / aramide yarn |
| Number of max. Fibres | 4 |
| Tube Type | Semi-tight tube |
| Fire behavior | Low smoke, halogen free and self-extinguishing |
| ID | 04-.../CWJSNH-...20 |
| OBJECT_ID | 8640837 |
