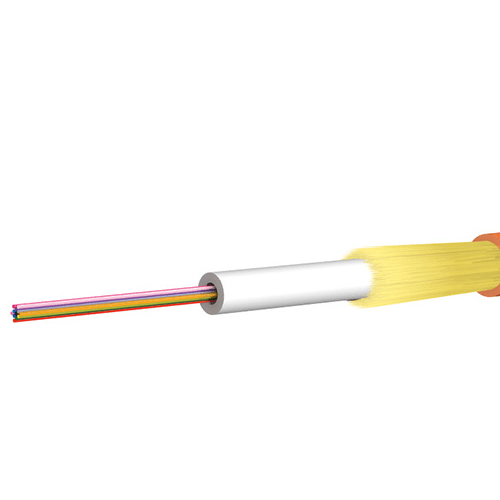

04-4G50/W(ZN)H-G50
Impact Standard | IEC 60794-1-2 E4 |
Stripping | Ripcord for easy jacked removal |
Tension Test Standard | IEC 60794-1-2 E1 |
Strain Reliefed Armouring | Strain relieved with aramide yarn |
Wavelength | for singlemode at 1550nm, for multimode at 1300nm |
Layer Type | 1 Ripcord |
Temperature Standard | IEC 60794-1-22 F1 |
Crush Test Standard | IEC 60794-1-2 E3 |
Trademark | LSFH |
Class | 1032 |
Application | For use in ducts and in unprotected environment |
Cable Type | Metal free indoor and outdoor cable |
Cable Description | Multi-fiber Loose Tube Cable |
Outer Jacket Type | Outer jacket / PE flame retardant |
Outer Jacket Ø | 5mm |
Reinforcement Type | Reinforcement / aramide yarn |
Number of max. Fibres | 24 |
Tube Type | Multi-fiber loose tube, up to 24 fibers each |
Fire behavior | Low smoke, halogen free and self-extinguishing |
ID | 24-.../W(ZN)H-...50 |
OBJECT_ID | 8606099 |
