Produktnummer: 84124505
Huber Suhner

Mechanical Thermal Properies High flexibility
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Strain relieved with aramide yarn
Wavelength for singlemode at 1550nm, for multimode at 1300nm
Fire Standard Single IEC 60332-1-2
Temperature Standard IEC 60794-1-2 F1
Crush Test Standard IEC 60794-1-2 E3
Fire Standard Bundle IEC 60332-3-25
Installation Tight bending radii
Other Properties Jacket material according to UL 94V-0
Class 1032
Application For direct connector assembly

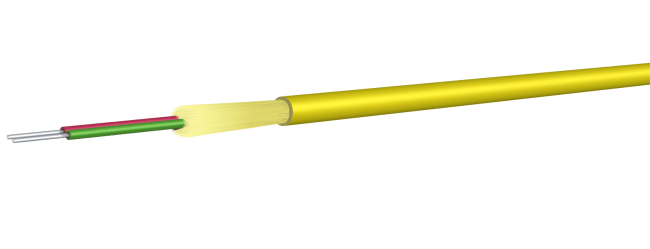

Cable Type Metal free indoor cable
Cable Description Riser Cable
Outer Jacket Type Outer jacket / PE flame retardant (LSFH)
Outer Jacket Ø 2.1mm
Reinforcement Type Reinforcement / aramide yarn
Number of max. Fibres 2
Tube Type Tight tube
Fire behavior Low smoke, halogen free and self-extinguishing
ID 02-.../V(ZN)H-...21
OBJECT_ID 8677659
