02-G50/CWJH-M20-F

Produktnummer: 84008169
Huber Suhner
Lagerbeholdning:

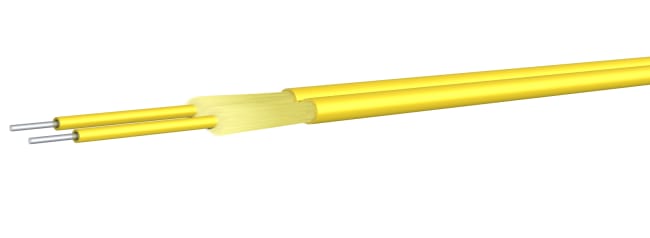

Duplex cable figure 8 Ø 2.0 x 4.1mm,

Application For direct connector assembly with strain relief
Cable Type Metal free indoor cable
Outer Jacket Width 4.1 mm
Cable Description Duplex Cable Figure 8
Outer Jacket Type Outer jacket / PE flame retardant
Impact Standard IEC 60794-1-2 E4
Stripping Tube can be stripped up to 1m in one piece
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Each fiber strain relieved
Wavelength for singlemode at 1550nm, for multimode at 1300nm
Fire Standard Single IEC 60332-1-2
Layer Type Flame barrier
Outer Jacket Ø 2 mm
Reinforcement Type Reinforcement / aramide yarn
Temperature Standard IEC 60794-1-22 F12
Number of max. Fibres 2
Crush Test Standard IEC 60794-1-2 E3
Tube Type Semi-tight tube
Installation Tight bending radii
Trademark LSFH
Other Properties2 Low fire load for high safety requirements
Fire Behavior Halogen free and non-corrosive fire gases
Class 1032
ID 02-.../CWJH-...20
OBJECT_ID 8431497
