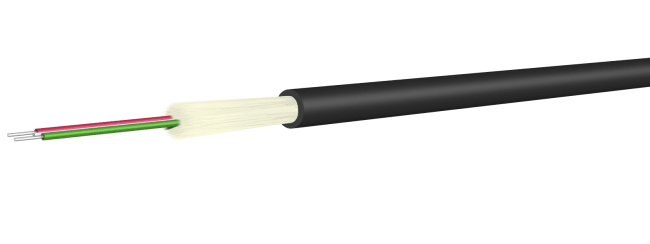

02-E9A2/F(ZNG)H-G55#D

Produktnummer: 85017020
Huber Suhner
Lagerbeholdning:

Water penetr Standard IEC 60794-1-2 F5B
Impact Standard IEC 60794-1-2 E4
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Rodent-protected, glass-armoured
Wavelength for singlemode at 1550nm, for multimode at 1300nm
Fire Standard Single IEC 60332-1-2
Temperature Standard IEC 60794-1-22 F12
Crush Test Standard IEC 60794-1-2 E3
Fire Standard Bundle IEC 60332-3-25
Fire Standard Circuit IEC 60331-25
Other Properties Low fire load for high safety requirements
Comments Optional: OFNR UL listed - ordering code: 02-E9.../F(ZNG)H-...55-UR OFNR UL listed - ordering code: 02-G50/F(ZNG)H-...55-UR
Class 1032
Application For direct connector assembly
Cable Type Metal free indoor and outdoor cable
Cable Description Riser Cable
Outer Jacket Type Outer jacket
Outer Jacket Ø 5.5mm
Reinforcement Type Reinforcement / glass-roving
Number of max. Fibres 2
Tube Type Tight tube
Fire behavior Low smoke, halogen free and self-extinguishing
ID 02-../F(ZNG)H-...55
OBJECT_ID 8457957
