02-E9/CWJH-E17#D
Outer Jacket Width | 3.5mm |
Impact Standard | IEC 60794-1-2 E4 |
Stripping | Tube can be stripped up to 1m in one piece |
Tension Test Standard | IEC 60794-1-2 E1 |
Strain Reliefed Armouring | Each fiber strain relieved |
Wavelength | for singlemode at 1310nm/1550nm |
Fire Standard Single | IEC 60332-1-2 |
Temperature Standard | IEC 60794-1-22 F12 |
Crush Test Standard | IEC 60794-1-2 E3 |
Installation | Tight bending radii |
Other Properties2 | Low fire load for high safety requirements |
Class | 1032 |
Application | For direct connector assembly with strain relief |
Cable Type | Metal free indoor cable |

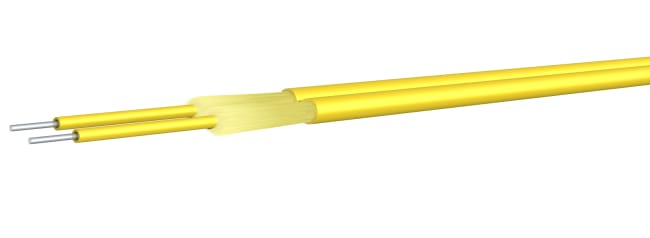

Cable Description | Duplex Cable Figure 8 |
Outer Jacket Type | Outer jacket / PE flame retardant |
Outer Jacket Ø | 1.7mm |
Reinforcement Type | Reinforcement / aramide yarn |
Number of max. Fibres | 2 |
Tube Type | Semi-tight tube |
Fire behavior | Halogen free and non-corrosive fire gases |
ID | 02-E9/CWJH-...17 |
OBJECT_ID | 7719047 |
