Produktnummer: 84084376
Huber Suhner

Water penetr Standard IEC 60794-1-2 F5B
Impact Standard IEC 60794-1-2 E4
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Rodent-protected, glass-armoured
Wavelength for singlemode at 1550nm, for multimode at 1300nm
Fire Standard Single IEC 60332-1-2
Temperature Standard IEC 60794-1-22 F1
Crush Test Standard IEC 60794-1-2 E3
Fire Standard Bundle IEC 60332-3-22
Fire Standard Circuit IEC 60331-25
Other Properties Longitudinal and transversal watertight cable
Comments Water penetration acc. IEC 60794-1-22 F5C: passed (h1m, t=24h, p<3m) Optional: OFNR UL listed - ordering code: ...-.../W(ZNG)H-...85-UR
Trademark LSFH
Other Properties2 For Masterline application
Class 1032
Cable Type Metal free indoor and outdoor cable

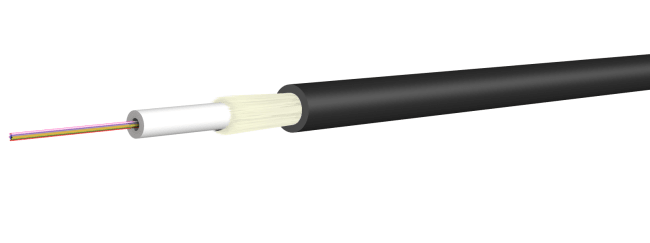

Cable Description Multi-fiber Loose Tube Cable
Outer Jacket Type Outer jacket / PE flame retardant (LSFH)
Outer Jacket Ø 8.5mm
Reinforcement Type Reinforcement / glass-roving
Number of max. Fibres 24
Tube Type Multi-fiber loose tube, up to 24 fibers each
Fire behavior Low smoke, halogen free and self-extinguishing
ID 24-.../W(ZNG)H-...85
OBJECT_ID 8453898
