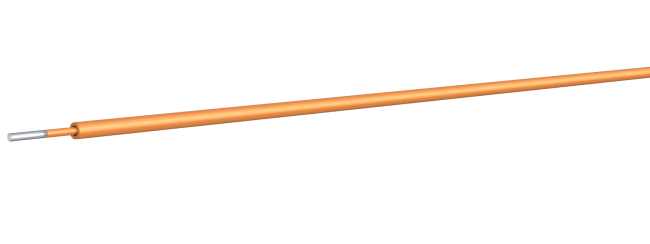

01-G50/CH-A9-FA
Mechanical Thermal Properies | High flexibility |
Temperature Standard | IEC 60794-1-22 F12 |
Crush Test Standard | IEC 60794-1-2 E3 |
Impact Standard | IEC 60794-1-2 E4 |
Stripping | Tube can be stripped up to 2m in one piece |
Tension Test Standard | IEC 60794-1-2 E1 |
Installation | Tight bending radii |
Trademark | LSFH |
Wavelength | for singlemode at 1550nm, for multimode at 1300nm |
Class | 1032 |
Application | For direct connector assembly |
Cable Type | Metal free indoor cable |
Number of max. Fibres | 1 |
Cable Description | Semi-tight Tube |
Tube Type | Semi-tight tube |
Fire behavior | Halogen free and non-corrosive fire gases |
ID | 01-.../CH-...9 |
OBJECT_ID | 7718211 |
