Produktnummer: 84078975
Huber Suhner

Impact Standard IEC 60794-1-2 E4
Stripping Tube can be stripped up to 1m in one piece
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Each fiber strain relieved
Wavelength for singlemode at 1310nm/1550nm
Temperature Standard IEC 60794-1-22 F12
Crush Test Standard IEC 60794-1-2 E3
Installation Tight bending radii
Other Properties2 Low fire load for high safety requirements
Class 1032
Application For direct connector assembly with strain relief
Cable Type Metal free indoor cable

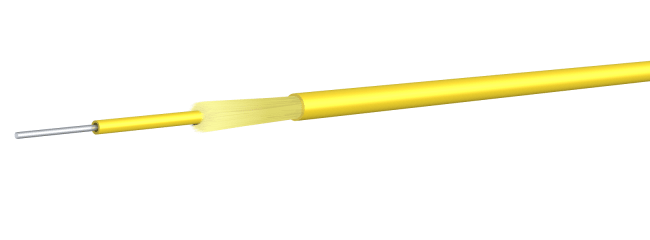

Cable Description Simplex Cable
Outer Jacket Type Outer jacket / PE flame retardant
Outer Jacket Ø 1.7mm
Reinforcement Type Reinforcement / aramide yarn
Number of max. Fibres 1
Tube Type Semi-tight tube
Fire behavior Halogen free and non-corrosive fire gases
ID 01-E9/CWJH-...17
OBJECT_ID 7719474
