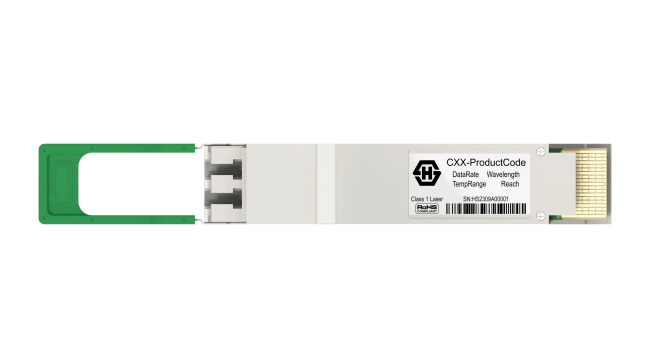

COS-200A04, 800G OSFP 2xFR4
2km, 1310nm, 2x LC/PC duplex
| H+S | |
|---|---|
| Built-in FEC | No |
| Special features | Dual Transceiver |
| Bit Error Rate at Receiver | 2.4E-4 |
| Media type | Singlemode |
| Connector | Dual LC/PC duplex |
| Supply Current | < 4848 mA |
| CDR | Double |
| Transmitter and dispersion eye closure for PAM4 (TDECQ) | < 3.4 dB |
| Extinction Ratio | > 3.5 dB |
| Max. Storage Temperature Range | -40 °C ... 85 °C |
| Modulation Format | PAM4 |
| Receiver LOS Hysteresis | > 0.5 dB |
| OMA - TDECQ | > -0.2 dBm - TDEQC (TDEQC < 1.4 dB)> -1.6 dBm (1.4 < TDEQC < 3.4 dB) |
| Media Reach Type | 2km, 1310nm, Singlemode fiber |
| Protocol | 2x 400G EthernetInfiniband |
| Max. supply voltage range | -0.5 V ... 3.6 V |
| Product code | COS-200A04 |
| Receiver Type | PIN |
| Total optical output power | < 10.4 dBm |
| bre.transceiver-digital-diagnostic-management | Yes |
| Receiver Overload | > 4.4 dBm |
| Receiver Sensitivity (OMA) | < -4.6 dBm |
| Management Interface | CMIS 5.0 |
| Operating channels | 1271.00nm (1264.5 to 1277.5nm)1291.00nm (1284.5 to 1297.5nm)1311.00nm (1304.5 to 1317.5nm)1331.00nm (1324.5 to 1337.5nm) , 1271.00nm (1264.5 to 1277.5nm)1291.00nm (1284.5 to 1297.5nm)1311.00nm (1304.5 to 1317.5nm)1331.00nm (1324.5 to 1337.5nm) |
| Laser hazard level | 1 |
| Supply voltage typical | 3.13 V ... 3.47 V |
| Side Mode Suppression | > 30 dB |
| bre.transceiver-supported-data-rate-receiver-new | 850 Gbps |
| bre.transceiver-stressed-receiver-sensitivity | < -2.6 dBm |
| Power consumption | < 16 W |
| Maximum Receiver Power (Damage Threshold) | > 5.4 dBm |
| Max. relative humidity range | 0 % ... 85 % |
| Form factor | OSFP112 (Flat top) |
| Laser Type | EML |
| Average launch power per lane | -3.2 dBm ... 4.4 dBm |
| Type | 800G OSFP112 2x400G PAM4 FR4 |
| Grid | None |
| Operation temperature | 0 °C ... 70 °C |
