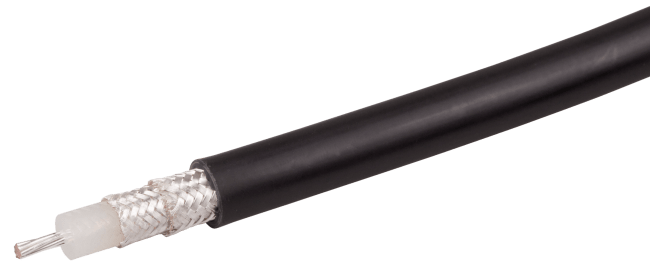

RADOX_RF_400
| H+S | |
|---|---|
| UV resistance | ISO 4892-2A |
| Insulation resistance | 10000000 MΩ*m |
| Fire characteristics | free of halogenes, acc. standard IEC 60754 |
| Velocity of signal propagation | 70.3 % |
| Weight | approx. 56 g/m |
| Signal delay | 4.74 ns/m |
| Product code | RADOX_RF_400 |
| Operating Voltage (at sea level) | ≤ 2.5 kVrms |
| Available as assembly only | No |
| Smoke test | EN 61034-2 |
| Cable group | U41 |
| Capacitance | 94.5 pF/m |
| Test voltage (50 Hz/1 min) | ≤ 5 kVrms |
| Installation temperature | -20 °C ... 60 °C |
| Dynamic bending radius | < 40 mm |
| Flame propagation standard | EN 60332-1-2EN 50305, 9.1.2 |
| Operation temperature | -40 °C ... 105 °C |
| Screening effectiveness | ≥ 70 dB at frequency 0.001 GHz ... 6GHz |
| Static bending radius | 10 |
| Cable family | RADOX RF: Highly flame retardant LSFH alternatives to RG cables |
| Operating frequency | 6 |
| Repeated bending radius | 40 mm |
| Impedance | 50 Ω +/-2Ω |
