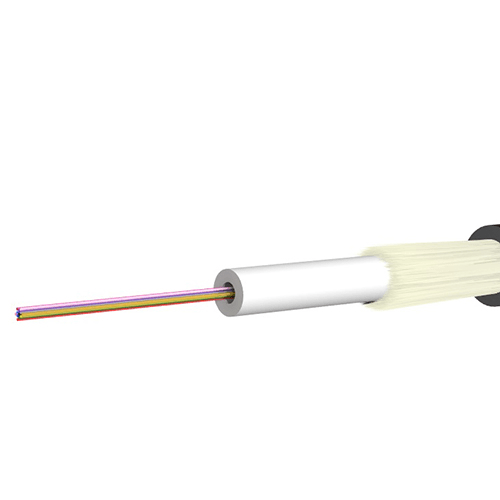

12-12G50/W(ZNG)R-C85-F
12-fiber, 50/125 µm OM3 BendOptimized,
Mechanical Thermal Properies | High abrasion and soldering iron resistance |
Water penetr Standard | IEC 60794-1-2 F5B |
Impact Standard | IEC 60794-1-2 E4 |
Tension Test Standard | IEC 60794-1-2 E1 |
Strain Reliefed Armouring | High flexibility and form stability |
Wavelength | for singlemode at 1550nm, for multimode at 1300nm |
Fire Standard Single | IEC 60332-1-2 |
Temperature Standard | IEC 60794-1-2 F1 |
Crush Test Standard | IEC 60794-1-2 E3 |
Fire Standard Bundle | IEC 60332-3-25 |
Fire Standard Circuit | IEC 60331-25 |
Installation | UV and Ozone resistance |
Other Properties | Meets requirements for circuit integrity in case of fire |
Comments | null |
Other Properties2 | Best oil and fluid resistance |
Class | 1032 |
Cable Type | Metal free rodent-protected indoor and outdoor cable |
Cable Description | Multi-fiber Loose Tube Cable |
Outer Jacket Type | Outer jacket / RADOX |
Outer Jacket Ø | 8.5 mm |
Reinforcement Type | Reinforcement / glass-roving |
Number of max. Fibres | 24 |
Tube Type | Multi-fiber loose tube, up to 24 fibers each |
Fire behavior | Halogen free cable with improved behaviour in case of fire |
ID | 24-.../W(ZNG)R-...85 |
OBJECT_ID | 8182638 |
