General Information
Product family: IANOS

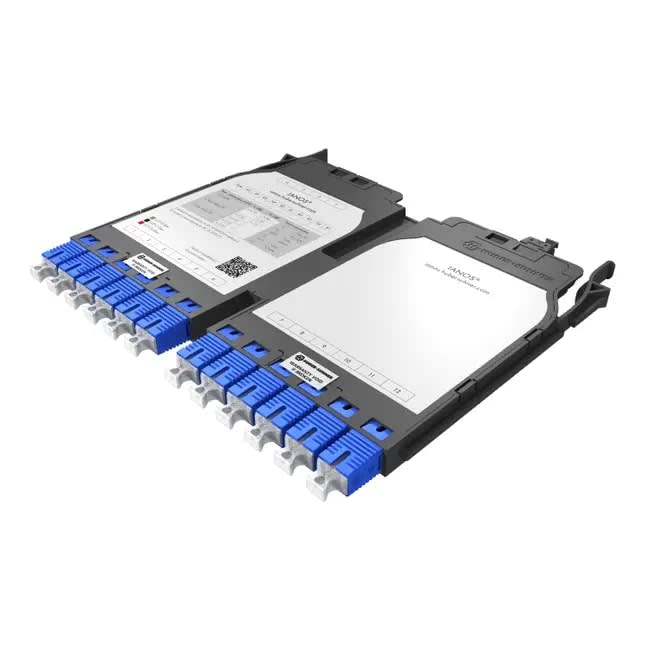

Product code: ITD-12-SCUS-01-12CM-SM-AS-00WW
Module type: Transition Module
Key features
Double module / 1 x MTP12 to 12 x SC transition
Fast and tool-less installation
Facilitates patching to serial transceiver
Compact and robust plastic construction
Low insertion loss design
Compatible with IANOS chassis
Colour coded MTP
How to use it
IANOS modules are interchangeable connectivity blocks that can be inserted into all IANOS chassis
| H+S | |
|---|---|
| Gender of adapter rear | pinned |
| Adapter family front | SC |
| Dimensions (LxWxH) | 172mm x 196mm x 12mm |
| Module colour | Jet Black (RAL 9005) |
| Number of adapters rear | 1 pcs |
| Module material | Plastic |
| Housing colour adapter front | Black |
| Insertion loss max. | ≤ 0.5 dB |
| Adapter key alignment | Key up - Key down |
| Product code | ITD-12-SCUS-01-12CM-SM-AS-00WW |
| Housing colour of adapter rear | Green |
| Polishing of adapter rear | SM APC |
| Module type | Transition Module |
| Polarity | AS |
| Product family | IANOS |
| Adapter family rear | MTP ® |
| Polishing adapter front | PC |
| Return loss | ≥ 50 dB |
| Number of adapter front | 12 pcs |
| Weight | 0.296 kg |
| Fiber quantity | 12 |
| Fiber type | Singlemode |
