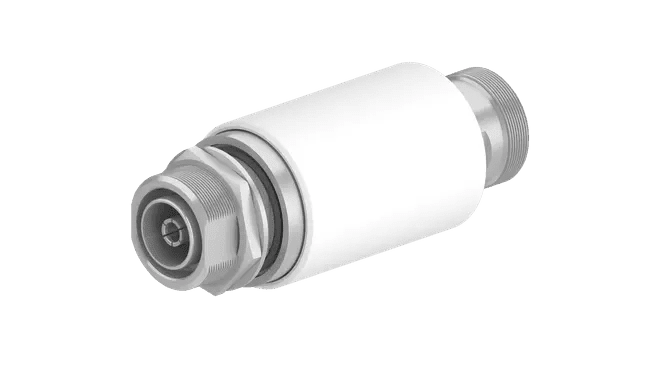

9077.41.0031 DC-DC Block 4 kV, 160-3000MHz 7/16f-f

SKU: 84012170
0
Stock:

Peak Power Range2 1000 W
PIM 3rd Range2 150 dBc typ.
Frequency min. Range2 300 MHz
Side of Bulkhead Port 1
CW Power Frame 500 W
Port1 Gender jack (female)
IP Rating IP65
Port1 Connector 7/16
Blocking Voltage OC max. 4000 kV
CW Power Range2 500 W
Insertion Loss Frame 0.2 dB
Frequency min. Frame 160 MHz
Outer Block 1
Port2 Gender jack (female)
Frequency max. Frame 3000 MHz
Port2 Centre Contact Plating Silver Plating
Insertion Loss Range2 0.1 dB
PIM 3rd Frame 150 dBc typ.
Operation Temperature min. -40 °C
Port1 Centre Contact Material Copper Beryllium Alloy
Inner Block 1
Return Loss Range2 26.44 dB
Blocking Voltage CC max. 4000 V
Peak Power Frame 1000 W
Bracket Mounting N
Product is Lead-Free Soldered not soldered
Weight 459 g
Port2 Centre Contact Material Copper Beryllium Alloy
Return Loss Frame 22 dB
Mounting Hole 110
Port2 Connector 7/16
Highlight4 Grounding feature
Leakage Current 5 µA
Operation Temperature max. 85 °C
Port1 Centre Contact Plating Silver Plating
Highlight3 Inner and outer conductor blocked (DC-DC Block)
Highlight2 Can also be installed reversely
2002/96/EC (WEEE) special marking needed
Class 1370
2006/1907/EC (REACH) compliant
Housing Material POM (Polyoxymethylene)
Frequency max. Range2 2500 MHz
Description Broadband HIGH VOLTAGE DC-DC Block
Highlight1 Broadband operation
Impedance 50
2011/65/EC (RoHS) compliant
OBJECT_ID 7138905
