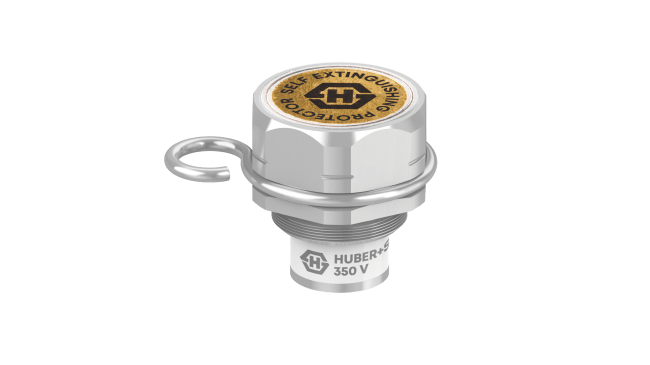

9071.99.0649 SEMPER GDT (350V)
| Impulse Sparkover 100 V/µs | 600V |
| External Remarks | GDT unit for retrofit and replacement for series 3401 and 3402 UL recognized component, UL File E153537 DC voltage < 48 V DC current <= 2.5 A Turn-off time: 20 s typically at 2.0 A and 25 °C ambient temperature < 40 s typically below 1 A and 25 °C ambient temperature Recovery time: 7 s at 25 °C ambient temperature Operating temperature: 40 °C to +85 °C (Lightning protection functionality) 20 °C to +85 °C (SEMPER(TM) functionality) (Specifications subject to change without notice) |
| Insulation Resistance | 10GOhm |
| Class | 1221 |
| Description | Gas discharge tube 350 V (SEMPER) |
| ID | 9071.99.0649 |
| 2011/65/EC (RoHS) | compliant |
| Operating Temperature max. | 85°C |
| Operating Temperature min. | -20°C |
| OBJECT_ID | 7122659 |
