33_MMPX-PC185-50-2/1--_NE

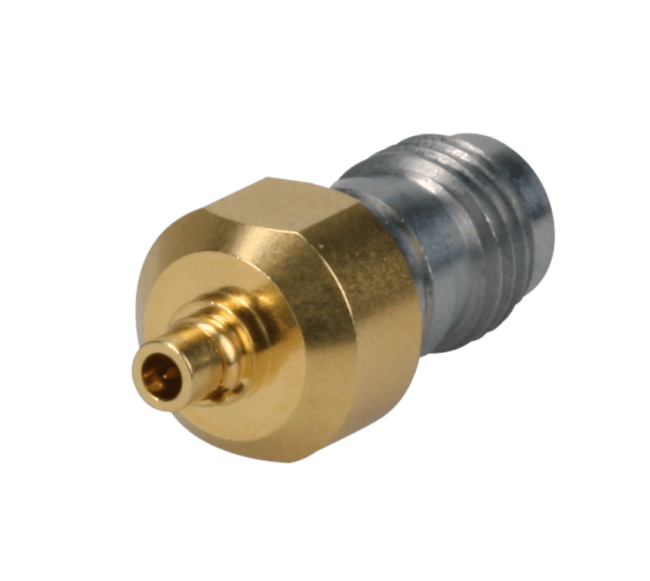

Coaxial adapter
MMPX - PC 1.85, 50 Ohm, male/female
| H+S | |
|---|---|
| Standard side 2 | IEC 60169-32 |
| Centre contact | Copper Beryllium Alloy / SUCOPRO / Gold Plating , Copper Beryllium / Brass / SUCOPRO / Gold Plating |
| Body | Copper Beryllium Alloy / Passivated (Plating) , Copper Beryllium Alloy / SUCOPRO / Gold Plating |
| Product code | 33_MMPX-PC185-50-2/1--_N |
| Insulator | LCP (Liquid crystal polymer) , LCP (Liquid crystal polymer) |
| Standard side 1 | HUBER+SUHNER MMPX STD (Patent US 7.294.023) |
| Interfaces | MMPX / PC 1.85 |
| Outer conductor | Stainless steel / Passivated (Plating) , Copper Beryllium Alloy / SUCOPRO / Gold Plating |
| Mating cycles | 500 |
| Adapter type | between series |
| Weight | 0.0046 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Operation temperature | -55 °C ... 155 °C |
| Gender side 1 | plug (male) |
| Rating | Compliant with exemption |
| Interface frequency | 67 GHz |
| Interface side 2 | PC 1.85 |
| Interface side 1 | MMPX |
| Gender side 2 | jack (female) |
| Impedance | 50 Ω |
