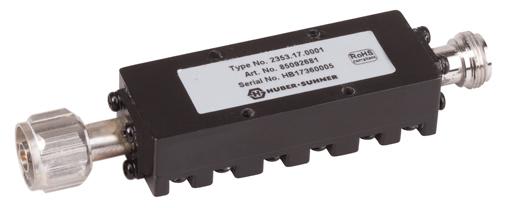

2353.17.0001
| H+S | |
|---|---|
| Port desigination | Port 1Port 2 |
| Housing material and surface treatment | Aluminium / Black paint |
| Ingress protection (IP Rating) | IP66 |
| Width | 80 mm |
| Gender | plug (male)jack (female) |
| Return loss | ≥ 18 dB |
| Environment (application) | Indoor |
| Interface | NN |
| Rejection | Min. 65 dB @ 10 MHz ... 4880 MHzMin. 65 dB @ 5700 MHz ... 12000 MHz |
| Depth | 30 mm |
| Insertion loss | ≤ 1 dB |
| Power handling | 20 W |
| Frequency range | 5250 MHz ... 5330 MHz |
| Band | Band 1Band 2 |
| Height | 20 mm |
| Product code | 2353.17.0001 |
| Weight | 0.14 kg |
| Operation temperature | -40 °C ... 65 °C |
