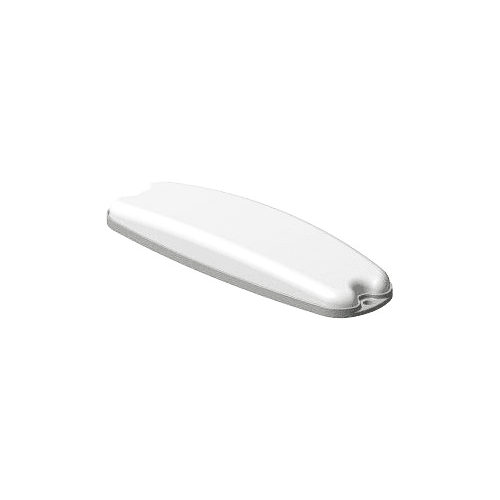

1399.35.0008
| H+S | |
|---|---|
| Radome material | PC (Polycarbonate) |
| Ingress protection (IP Rating) | IPX5 |
| Dimensions | 31 mm x 91.8 mm x 281.8 mm (Height x Width x Depth) |
| Environment (application) | Indoor |
| Back plate/base plate material | Aluminum |
| Remarks | For further information please refer to data sheet. , Low corrosion design acc. to MIL-F-14072(E). |
| Transport temperature | -40 °C ... 85 °C |
| Radome colour | RAL 9010 (white) |
| Bands | 2400 MHz ... 2690 MHz, VSWR 1.5, Gain 4 dBi5150 MHz ... 5935 MHz, VSWR 1.5, Gain 6 dBi5935 MHz ... 7125 MHz, VSWR 1.8, Gain 6 dBi |
| Antenna family | SENCITY® Omni-SR Slim |
| Flammability rating | EN 45545-2 |
| Storage temperature | -40 °C ... 85 °C |
| Operation temperature | -40 °C ... 85 °C |
| Product code | 1399.35.0008 |
| Weight | 0.32 kg |
