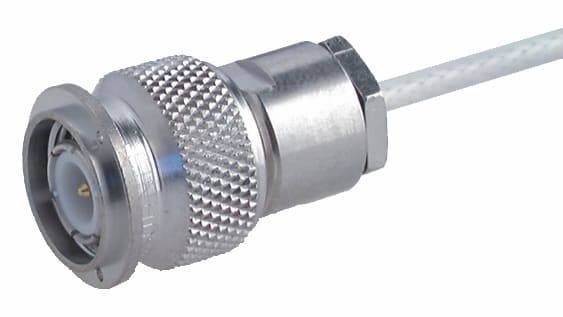

11 TNC-50-3-6/133NE
Coaxial connector
|TNC, 50 Ohm, Straight cable male
Cable Group4 | X25 |
Cable Group3 | U11 |
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | clamped |
Class | 1037 |
Body Material | Brass |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | U7 |
Cable Group2 | U9 |
Cable Retention Force | 125N |
Cable1 | RG_58_C/U |
Cable2 | RG_223_/U |
Cable3 | RG_400_/U |
Centre Contact Material | Brass |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight cable plug |
CONNECTOR SERIES | TNC |
Coupling Nut Material | Brass |
Coupling Nut Plating | SUCOPLATE (R) Plating |
Dielectric Size | 3mm |
Gasket Material | VMQ (Silicone rubber) |
Gender | plug |
ID | 11_TNC-50-3-6/133_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 11GHz |
Interface Standards | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165°C |
Operating Temperature min. | -65°C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Single |
PATTERN CLASSES | 11 |
Weight | 0.0201kg |
CONNECTOR SHAPE | straight |
Type Number | 11_TNC-50-3-6/133_NE |
OBJECT_ID | 1588408 |
