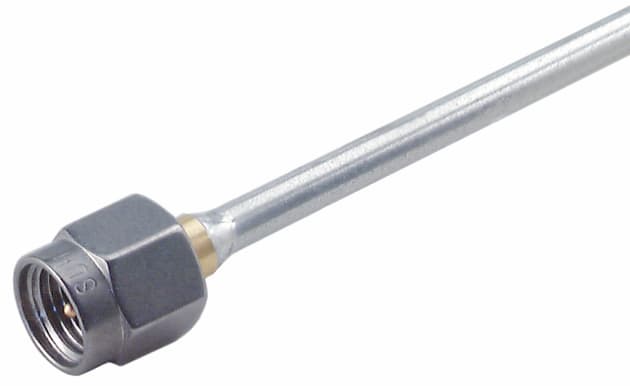

11_SK-50-2-51/119_NH
Coaxial connector
|SK, 50 Ohm, Straight cable male
| Frequency min. Range2 | 24GHz |
| VSWR Range 2 | 1.33 |
| Return Loss Range2 | 17dB |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | soldered |
| Class | 1037 |
| Body Material | Copper Beryllium Alloy |
| Frequency max. Range2 | 40GHz |
| Body Plating | Gold Plating (Nickel underplated) |
| Cable Group Connectors | Y10 |
| Cable Retention Force | 240N |
| Cable1 | EZ_118_TP |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | SK |
| Coupling Nut Material | Stainless Steel |
| Dielectric Size | 2mm |
| Frequency max. Range1 | 24GHz |
| Frequency min. Range1 | 0GHz |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| Highlight1 | Precision connector |
| ID | 11_SK-50-2-51/119_N |
| Impedance | 50 |
| Insulator Material | PPE (Polyphenylene ether, PPO) |
| Interface Frequency max. | 40GHz |
| Interface Standards | MIL-STD-348A/323 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 125°C |
| Operating Temperature min. | -55°C |
| Outer Contact Material | Copper Beryllium Alloy |
| Outer Contact Plating | Gold Plating (Nickel underplated) |
| PATTERN CLASSES | 11 |
| Return Loss Range1 | 25dB |
| Weight | 0.0027kg |
| CONNECTOR SHAPE | straight |
| VSWR Range 1 | 1.12 |
| OBJECT_ID | 3019234 |
