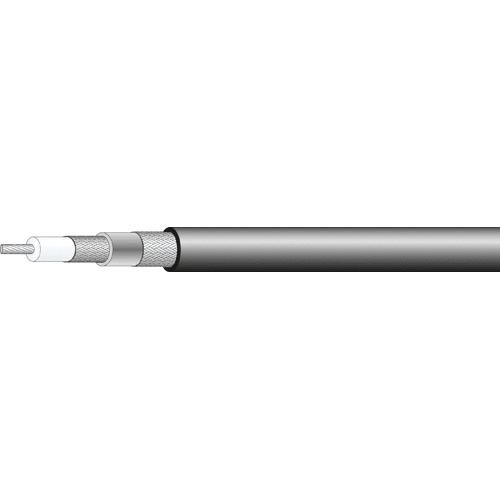

G_02312-03
| H+S | |
|---|---|
| Operating Voltage (at sea level) | ≤ 1.5 kV |
| Available as assembly only | No |
| Cable group | W1 |
| Insulation resistance | 100000000 MΩ*m |
| Capacitance | 100.7 pF |
| Velocity of signal propagation | 66 % |
| Weight | 3 kg/m |
| Test voltage (50 Hz/1 min) | ≤ 3 kV |
| Installation temperature | -20 °C ... 85 °C |
| Signal delay | 5.03 ns/m |
| Product code | G_02312-03 |
| Dynamic bending radius | 85 mm |
| Static bending radius | 20 |
| Cable family | G: RF cables with PE dielectrics |
| Operating frequency | 2 |
| Repeated bending radius | 42 mm |
| Operation temperature | -25 °C ... 85 °C |
| Impedance | 50 Ω +/-2Ω |
| Screening effectiveness | 75dB |
