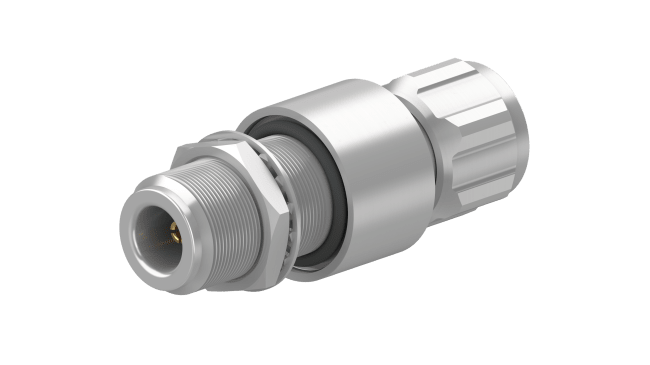

3406.17.0028
| H+S | |
|---|---|
| Side of bulkhead | protected side |
| Moisture resistance according | MIL-STD-202, Method 106 |
| Vibration according | MIL-STD-202, Method 204, Cond. A |
| Storage temperature | -40 °C ... 85 °C |
| Residual pulse energy (typ.) | 250 µJ LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) |
| Thermal shock according | MIL-STD-202, Method 107, Cond. B |
| Insertion loss typical | ≤ 0.2 dB |
| Product code | 3406.17.0028 |
| Main path connectors | Port 1: unprotected, N plug (male)Port 2: protected, N jack (female) |
| Housing material / plating | Brass / Tri-metal Plating |
| Ingress protection (IP Rating) | IP68 |
| Static spark voltage | 90 V, +/- 20 % (@ 100 V/s) |
| Details | CAS: 7439-92-1 Lead |
| Mounting and grounding | MH24 (bulkhead mounting) |
| Return loss typical | ≥ 20 dB |
| Surge current handling capability | 10 kA single, 5 kA multiple (test pulse 8/20 µs) |
| Center contact, material / plating | Port 1: Bronze / Gold PlatingPort 2: Bronze / Gold Plating |
| EMP can be install reversed | YES |
| Mating cycles | 500 |
| Inline design | YES |
| Weight | 76 g |
| Exemptions | 6c |
| Gas tube | Yes DC, GDT included, not replaceable |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Impedance | 50 Ω |
| Operation temperature | -40 °C ... 85 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Product description | Slim Line GDT technology |
| Frequency frame | 0 MHz to 4000 MHz |
| Regulation | REACH 1907/2006 Article 33 SVHC |
| CW power frame | 21 |
