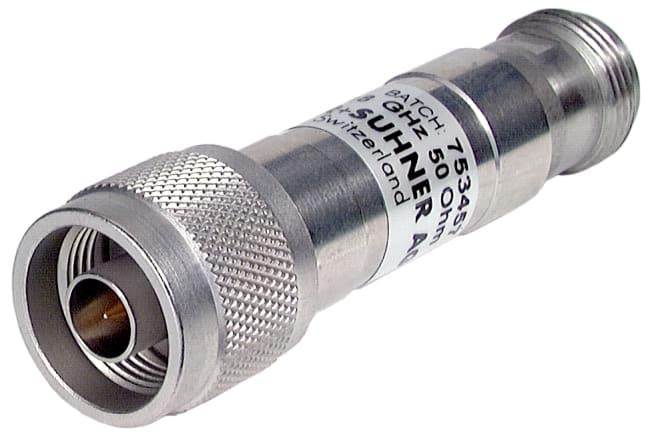

6803.17.B
| H+S | |
|---|---|
| Peak power | 500 W, 5 µs pulse width, 0.05 % duty cycle |
| Body | Stainless Steel , Stainless Steel |
| Centre contact | Copper Beryllium Alloy / Gold Plating , Copper Beryllium Alloy / Gold Plating |
| Gasket | VMQ (Silicone rubber) |
| Product code | 6803.17.B |
| Interface | N-precision / jack (female) , N-precision / plug (male) |
| Attenuation nominal | 3 dB |
| Electrical remarks | Peak voltage max. 160V (50 Ohm) |
| Details | CAS: 7439-92-1 LeadCAS: 84852-15-3 4-Nonylphenol, branched and linear |
| Return loss | 16.5 dB |
| VSWR | 1.35 |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Operating frequency | 0 GHz ... 18 GHz |
| Average power | 2 W at 30 °C ambient temperature. Linearly derated to 0 W at 130 °C ambient temperature. |
| Insulator | Air Dielectric - Bead - PPH , Air Dielectric - Bead - PPH |
| Outer contact | Stainless Steel , Stainless Steel |
| Impedance | 50Ω |
| Weight | 0.086 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Operation temperature | -55 °C ... 130 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Regulation | REACH 1907/2006 Article 33 SVHC |
