| H+S |
| Moisture resistance according |
MIL-STD-202, Method 106 |
| Vibration according |
MIL-STD-202, Method 204, Cond. D |
| bre.att-ter-frequency-range-max |
2500 |
| bre.att-ter-frequency-range-min |
806 |
| Storage temperature |
-40 °C ... 85 °C |
| Residual pulse energy (typ.) |
6 µJ LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)350 nJ NEMP (test pulse 6 kV 5/200 ns) |
| Thermal shock according |
MIL-STD-202, Method 107, Cond. B |
| DC supply voltage |
15 V |
| Insertion loss typical |
≤ 0.5 dB |
| Product code |
3403.17.0051 |
| Main path connectors |
Port 1: unprotected, N plug (male)Port 2: protected, N jack (female) |
| Housing material / plating |
Aluminium / Chromatized |
| Electrical remarks |
Measured according to MIL-STD-461 |
| Ingress protection (IP Rating) |
Mated / IP65, according to IEC 60529 |
| Details |
CAS: 7439-92-1 Lead |
| Mounting and grounding |
M6 (screw) |
| Residual pulse voltage (typ.) |
18 V LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)35 V NEMP (test pulse 6 kV 5/200 ns) |
| Return loss typical |
≥ 20.8 dB |
| Surge current handling capability |
30 kA single, 20 kA multiple (test pulse 8/20 µs) |
| Center contact, material / plating |
Port 1: Brass / Gold Plating (without Nickel underplating)Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
| DC current |
3 A |
| Mating cycles |
500 |
| Weight |
346 g |
| Exemptions |
6c |
| Gas tube |
Yes DC, GDT included, replaceable, 9071.99.0548 (90 V) |
| Directive |
RoHS 2011/65/EU and (EU) 2015/863 |
| Impedance |
50 Ω |
| Operation temperature |
-40 °C ... 85 °C |
| Rating |
Compliant with exemption , Contains one or more SVHC >0,1% |

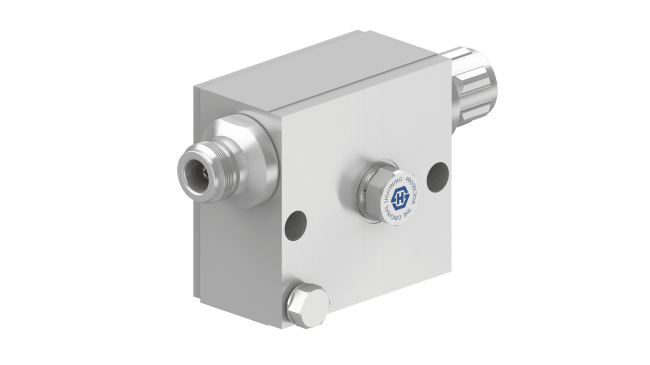

| Product description |
Fine protector hybrid technology |
| Frequency frame |
806 MHz to 2500 MHz |
| Regulation |
REACH 1907/2006 Article 33 SVHC |
| CW power frame |
50 |
