| H+S |
| Moisture resistance according |
MIL-STD-202, Method 106 |
| Vibration according |
MIL-STD-202, Method 204, Cond. D |
| Storage temperature |
-40 °C ... 85 °C |
| Residual pulse energy (typ.) |
350 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) |
| Thermal shock according |
MIL-STD-202, Method 107, Cond. B |
| Insertion loss typical |
≤ 0.2 dB |
| Product code |

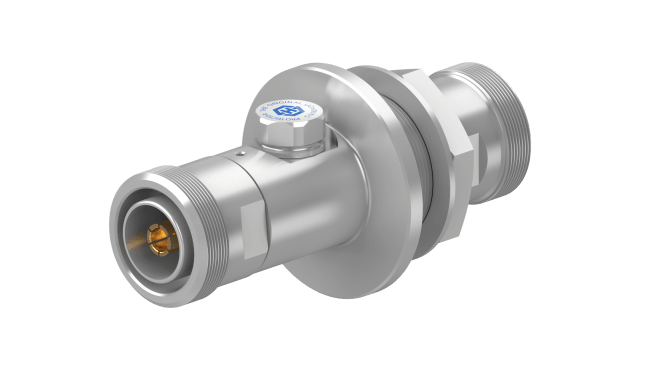

3402.41.A |
| Main path connectors |
Port 1: unprotected, 7/16 jack (female)Port 2: protected, 7/16 jack (female) |
| Housing material / plating |
Brass / SUCOPLATE (R) Plating |
| Electrical remarks |
Data refer to GDT 9071.99.0547, 230 V |
| Ingress protection (IP Rating) |
IP67 |
| Details |
CAS: 3147-75-9 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)CAS: 7439-92-1 Lead |
| Mounting and grounding |
MH72 (bulkhead mounting) |
| Residual pulse voltage (typ.) |
650 V (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) |
| Return loss typical |
≥ 20 dB |
| Surge current handling capability |
30 kA single, 20 kA multiple (test pulse 8/20 µs) |
| Center contact, material / plating |
Port 1: Copper Beryllium Alloy / Silver PlatingPort 2: Copper Beryllium Alloy / Silver Plating |
| EMP can be install reversed |
YES |
| Mating cycles |
500 |
| Weight |
399 g |
| Exemptions |
6c |
| Gas tube |
Yes DC, GDT not included |
| Directive |
RoHS 2011/65/EU and (EU) 2015/863 |
| Impedance |
50 Ω |
| Operation temperature |
-40 °C ... 85 °C |
| Rating |
Compliant with exemption , Contains one or more SVHC >0,1% |
| Product description |
GDT technology up to 2.5 GHz |
| Frequency frame |
0 MHz to 2500 MHz |
| Regulation |
REACH 1907/2006 Article 33 SVHC |
| CW power frame |
≤ 150 W |
