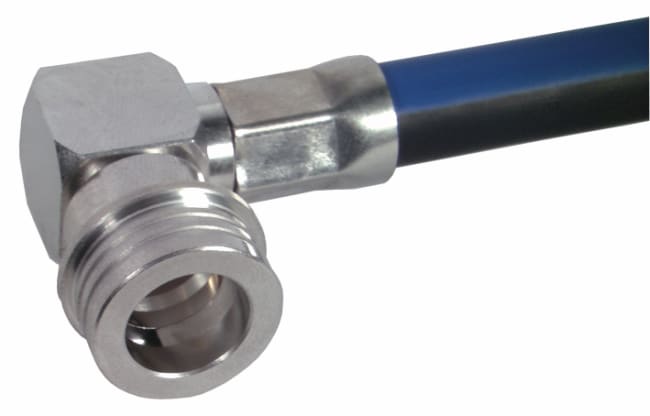

16_QN-50-7-5/133_NH
Coaxial connector
QN, 50 Ohm, Right angle cable male
| H+S | |
|---|---|
| Suitable cables | SPUMA_400 |
| Product code | 16_QN-50-7-5/133_N |
| Gasket | EPDM (Ethylene propylene diene rubber) |
| Insulator | PFA / PTFE |
| Centre contact | Brass / SUCOPRO Plating |
| Available as assembly only | No |
| Details | CAS: 7439-92-1 Lead |
| Cable group | X32U30 , X32 - 7 mm / 50 OhmU30 - 7 mm / 50 Ohm |
| Crimp ferrule | Copper / SUCOPLATE (R) Plating |
| Additional cables | LMR-400 |
| Standard | QN QLF compliant |
| Mating cycles | 100 |
| Weight | 0.0363 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | crimped |
| Interface type | QN |
| Gender | plug |
| Operation temperature | -40 °C ... 125 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Interface frequency | 11 GHz |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | soldered |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
