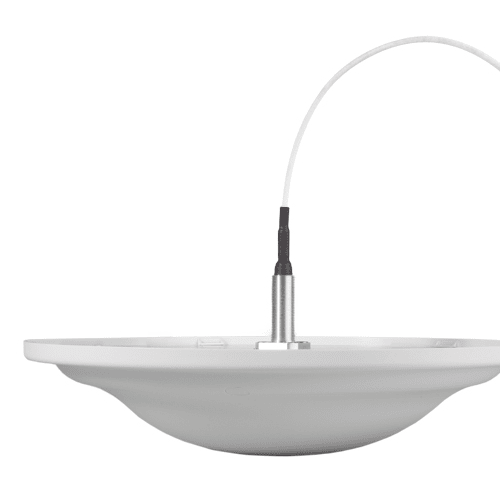

1399.17.0144 SENCITY® Optima Antenna with pig-tail
| H+S | |
|---|---|
| Radome material | ABS (Acrylonitrile butadiene styrene) |
| Dimensions | 69 mm x 321 mm (Height x Diameter) |
| Environment (application) | Indoor |
| Back plate/base plate material | Aluminum |
| Remarks | For further information please refer to data sheet. , Gain specification defined without use of ground plane. Plenum rated cable |
| Transport temperature | -40 °C ... 80 °C |
| Radome colour | RAL 9010 (white) |
| Antenna configuration | SiSo |
| Solar radiation | DIN 75220 |
| Bands | 690 MHz ... 1100 MHz, VSWR 2, Gain 2 dBi1100 MHz ... 1710 MHz, VSWR 1.5, Gain 6 dBi1710 MHz ... 2700 MHz, VSWR 1.7, Gain 6 dBi2700 MHz ... 3800 MHz, VSWR 1.6, Gain 6 dBi3800 MHz ... 5150 MHz, VSWR 1.8, Gain 7 dBi5150 MHz ... 6400 MHz, VSWR 1.8, Gain 8 dBi |
| Antenna family | SENCITY® Optima |
| Storage temperature | -40 °C ... 80 °C |
| IMD level | -150 dBc at carrier power 2x 30 dBm |
| Product code | 1399.17.0144 |
| Weight | 1 kg |
| Flammability rating | UL 94-V0 |
| Operation temperature | 0 °C ... 55 °C |
