4-PIN Power Adapter with I/O Access
Technical Data
GENERAL
Input connector 4-pin, 3 mm pitch and 4-way screw terminal block
Output connector 4-pin, 3 mm pitch
Cable 4 x 0.20 mm² (24 AWG), 100 mm
Screwdriver type Micro slotted
Weight 15 g
CONNECTION DATA*
Conductor cross section solid / flexible:
0.14 – 0.50 mm² (20 – 26 AWG)
Conductor cross section flexible, with ferrule, with plastic sleeve:
0.25 – 0.30 mm² (22 – 23 AWG)
Pinout
1 Pin: Power +
2 Pin: Ground –
3 Pin: Input/Output
4 Pin: Input/Output
* Connection data for 4-way screw terminal block
RUT200 er en kompakt industriell mobilrouter som tilbyr pålitelig, kritisk tilkobling i krevende forhold som er vanlige i bransjer som automatisering, transport og produksjon. Denne modellen er utstyrt med 4G LTE, Wi-Fi og to Ethernet-porter, noe som gjør den ideell for raskt oppsett av primær- og backup-tilkobling med fjernadministrasjonsmuligheter.
RUT241 er utstyrt med 4G LTE, Wi-Fi og to Ethernet-porter, og tilbyr uavbrutt tilkoblingskontinuitet med automatisk WAN failover. Industriell design, kompakt størrelse, flere tilkoblingsgrensesnitt og kompatibilitet med RMS gjør denne enheten til et utmerket valg i mange IoT- og M2M-løsninger.
RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.
The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.
The RUT901 cellular router delivers the top-rated features of its predecessors, the RUT950 and RUT951, to the market. The device ensures high-performance, providing automatic WAN failover to an available backup connection, guaranteeing network continuity and eliminating downtime.
RUT951 features dual-SIM cellular connectivity combined with Wi-Fi and four Ethernet interfaces to meet the needs of the most varied IoT scenarios. Powered by RutOS, this router offers advanced customization options, automation features, and top-level security for your solution.
RUTC50 er en 5G-router med dual-band Wi-Fi 6-teknologi og multi-user MIMO, som sikrer ultrahøye cellulære hastigheter på opptil 3,4 Gbps. Denne 5G-routeren er også utstyrt med dual SIM med automatisk failover, fem Gigabit Ethernet-porter og GNSS for presis posisjonssporing. RUTC50 støtter både SA- og NSA 5G-arkitekturer og er bakoverkompatibel med 4G (Cat 20) og 3G, noe som sikrer robust og pålitelig ytelse.
The RUTM08 is an industrial wired router designed for establishing reliable cable connections across a broad range of industrial applications. The router has four Gigabit RJ45 ports, which enable rapid network and data transmission between connected endpoints. The RUTM08 can support up to 128 tag/port-based VLANs for enhanced network flexibility as well as multiple VPNs and M2M communication protocols, which are particularly relevant in industrial environments.
The RUTM09 is a wireless 4G LTE router developed for high-cellular-speed applications. It comes with Cat 6 and dual SIM capabilities, enabling the device to support speeds of up to 300 Mbps and functions like carrier aggregation and failover. Additionally, the RUTM09 comes with four Gigabit RJ45 ports and includes GNSS, enabling GPS tracking for precise location detection. These features make the RUTM09 an exceptional choice for ensuring non-interruptible network connectivity for mobile applications or those requiring tracking.
The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.
The RUTM11 is an industrial LTE router from Teltonika, designed for applications that demand high data throughput and a robust network connection with zero tolerance for high latency and interruptions. The RUTM11 comes equipped with four Gigabit RJ45 ports, dual-band Wi-Fi, and dual SIM capabilities, enabling multiple failover scenarios. This router features LTE Cat 6, allowing it to achieve cellular speeds of up to 300 Mbps, which can be increased with carrier aggregation.
PROFESSIONAL ETHERNET ROUTER This professional router combines the best of wired and wireless routing functionalities with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi. Advanced remote management capabilities, along with numerous supported security and networking protocols, make RUTX10 an ideal choice for professional applications
RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with 5x Gigabit Ethernet ports and dual-band Wi-Fi, it provides data connection redundancy with auto-failover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options.
The first rack-mountable LTE Cat 6 router in the Teltonika Networks portfolio comes with redundant power supplies, WAN failover, dual-SIM, SFP, USB, and dedicated console ports. This feature-rich device with highly customizable and powerful RutOS is perfect where a fast and ultra-reliable connection is needed.
This LTE-A Cat 6 router also offers dual-band Wi-Fi and two Ethernet ports to connect devices. Featuring Wi-Fi and Wi-Fi Protected buttons for quick setup, this router is simple to use yet enables high customizability for advanced users with RutOS.
TRB140 is an ultra-small, lightweight, and energy-efficient IoT device with mission-critical LTE Cat 4 and Gigabit Ethernet connectivity options. Linux environment offers a high degree of customization. This gateway is perfect for projects and applications where a single device must be upgraded with reliable and secure internet connectivity.
TRB141 is a small industrial LTE Cat 1 gateway equipped with diverse inputs/outputs and a Micro USB port. This gateway comes with secure, highly customizable RutOS and works perfectly for remote management of devices and applications using I/O.

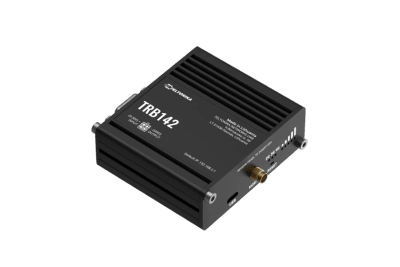

TRB142 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE connectivity. TRB142 comes with a widely used RS232 interface for remote management of industrial devices.
TRB145 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE connectivity that comes with a widely used RS485 interface for remote management of industrial equipment.
The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.
TRB500 is a compact, energy-efficient 5G gateway for ultra-fast data transmission with ultra-low latency. Backward compatibility with 4G and 3G networks enables future-proofing solution infrastructures even in areas where 5G is not yet available.
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.

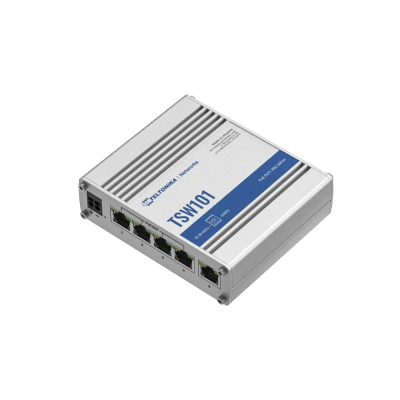

The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
