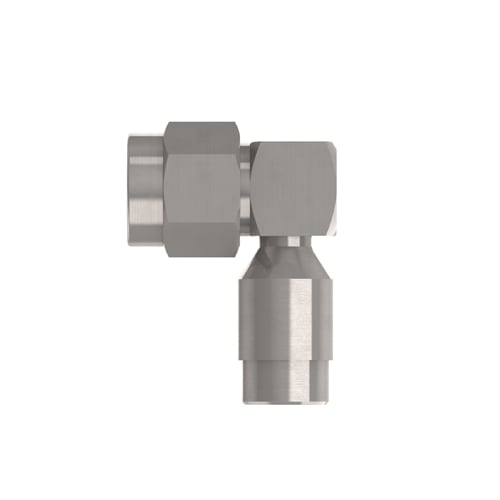

16_SMA-R50-3-16/133_NP
Coaxial connector
SMA, 50 Ohm, Right angle cable male
| H+S | |
|---|---|
| Interface type | SMA-reverse |
| Operation temperature | -65 °C ... 165 °C |
| Suitable cables | RG_400_/U |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Product code | 16_SMA-R50-3-16/133_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Copper Beryllium Alloy / SUCOPRO Plating |
| Interface frequency | 18 GHz |
| Available as assembly only | No |
| Cable group | U9U41U11 , U9 - 3 mm / 50 OhmU41 - 3 mm / 50 OhmU11 - 3 mm / 50 Ohm |
| Crimp ferrule | Copper / SUCOPLATE (R) Plating |
| Additional cables | RADOX_RF_400 |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | soldered |
| Standard | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Weight | 0.0047 kg |
| Cable entry outer contact | crimped |
| Gender | plug |
