16_N-50-7-53/133_NE

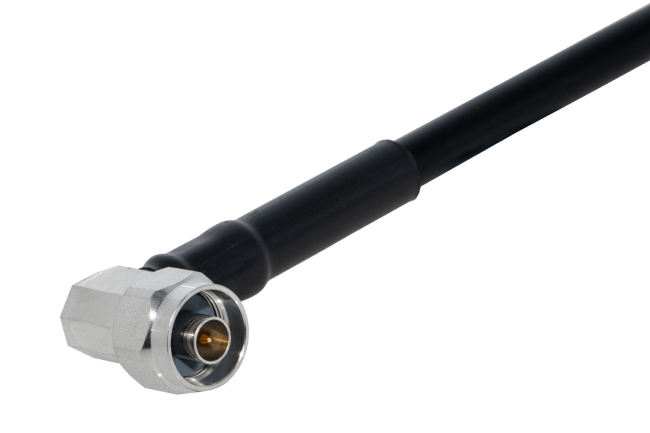

Coaxial connector
N, 50 Ohm, Right angle cable male
| H+S | |
|---|---|
| Interface type | N |
| Operation temperature | -65 °C ... 165 °C |
| Suitable cables | SPUMA_400 |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Product code | 16_N-50-7-53/133_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Brass / SUCOPRO Plating |
| Interface frequency | 11 GHz |
| Ingress protection (IP Rating) | Mated / IP67 |
| Available as assembly only | Yes |
| Cable group | X32U30 , X32 - 7 mm / 50 OhmU30 - 7 mm / 50 Ohm |
| Crimp ferrule | Brass / SUCOPLATE (R) Plating |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | soldered |
| Standard | IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Weight | 0.039347 kg |
| Cable entry outer contact | crimped |
| Gender | plug |
