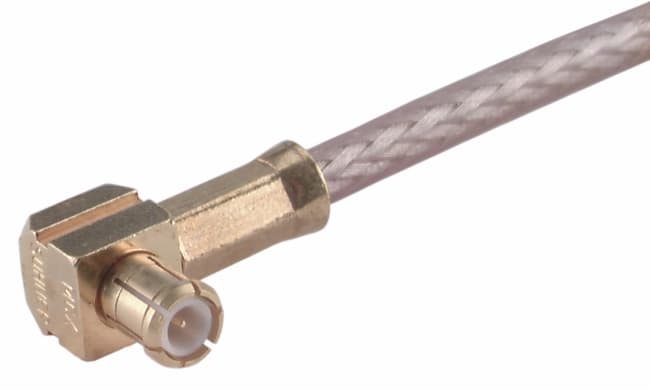

16_MCX-50-2-11/111_NH-1
Coaxial connector
|MCX, 50 Ohm, Right angle cable male
| Engangement Force max. | 25N |
| Disengagement Force max. | 20N |
| Disengagement Force min. | 8N |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPRO Plating |
| Cable Group Connectors | U4 |
| Cable Retention Force | 108N |
| Cable1 | K_02252_D |
| Cable2 | ENVIROFLEX_316_D |
| Cable3 | G_02232_D |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Right angle cable plug |
| CONNECTOR SERIES | MCX |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | Gold Plating (without Nickel underplating) |
| Dielectric Size | 2mm |
| Gender | plug |
| ID | 16_MCX-50-2-11/111_N_-1 |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 6GHz |
| Interface Standards | IEC 60169-36_CECC 22220 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Copper Beryllium Alloy |
| Outer Contact Plating | Gold Plating (Nickel underplated) |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 16 |
| Weight | 0.0011kg |
| CONNECTOR SHAPE | right-angle |
| Type Number | 16_MCX-50-2-11/111_NH-1 |
| OBJECT_ID | 1600464 |
