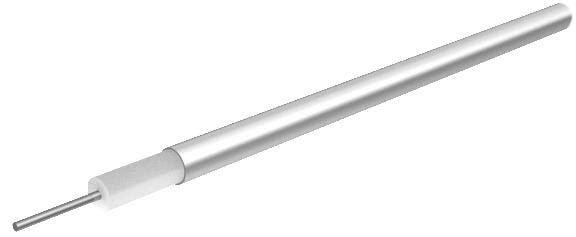

SR 250/M17 (7,6 MTR)

SKU: 22810701
Huber Suhner
Stock:

Verified for Lead-Free Soldering 1
Installation Temperature max. 60 °C
Operating Temperature min. -55 °C
Attenuation Coefficient b max. 0.0476
Epsilon r 2.07
Attenuation Coefficient b 0.03967
Attenuation Coefficient a 0.1836
Attenuation Coefficient a max. 0.22032
Calculated Power N
Centre Conductor Diameter 1.63 mm
Centre Conductor Material Copper, Silver plated
Installation Temperature min. -20 °C
Operating Temperature max. 100 °C
Outer Conductor 2 Description Outer conductor
Outer Conductor 3 Description Outer conductor
Outer Conductor 4 Description Outer conductor
Screen Frequency max. 18 GHz
Screen Frequency min. 0.1 GHz
Outer Cond1 Coverage 100 %
Outer Conductor1 Diameter 6.35 mm
Outer Conductor1 Material Copper
2002/96/EC (WEEE) no special marking needed
Class 1148
2006/1907/EC (REACH) compliant
2000/53/EC (ELV) compliant
Alternative Cable EZ_250_TP_M17
Armoring 1 Description Armor
Armoring 2 Description Armor
Armoring 3 Description Armor
Armoring 4 Description Armor
Cable Category Formable microwave cable
Cable Family Semi-rigid: Semi-rigid, formable microwave cables
Kabelgruppe - Kabel Y7
Calc IL/Power up to Freq 17 MHz
Capacitance 97.1 pF/m
Centre Conductor Design Wire
CW Power 1400 W
CW Power Frequency 1 GHz
Description RG401 dimension, MIL style, 50 Ohm, 18 GHz, 100°C, ø6.35 mm, no jacket
Dielectric Diameter 5.31 mm
Dielectric Material PTFE (Polytetrafluoroethylene)
Distribution txt Semi-rigid, RG401 dimension, MIL style, 50 Ohm, 18 GHz, 100°C, ø6.35 mm, no jacket
Halogen Free N
ID SR_250_M17
Impedance 50 Ohm
Impedance Tolerance ± 0.5 Ohm
Insulation Resistance 100000000 MOhm/m
2011/65/EC (RoHS) compliant
Number of Screens 1
Only as Assembly N
Operating Frequency 18 GHz
Operating Voltage 3 kV
Outer Conductor1 Design Tube
Propagation Velocity 69.5 % of c
Weight 15.8 kg/100m
Screen Effectiveness 120 dB
Signal Delay 4.8 ns/m
Static Bend Radius 9.52 mm
Test Voltage 7.5 kV
